1. Product Scientific Research and Structural Feature
1.1 Crystal Framework and Chemical Stability

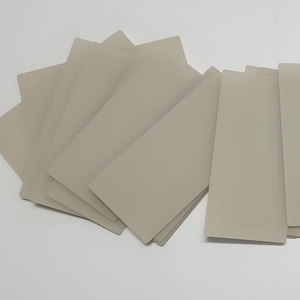

(Aluminum Nitride Ceramic Substrates)
Light weight aluminum nitride (AlN) is a wide bandgap semiconductor ceramic with a hexagonal wurtzite crystal structure, made up of alternating layers of light weight aluminum and nitrogen atoms adhered through strong covalent interactions.
This robust atomic plan enhances AlN with remarkable thermal stability, keeping architectural integrity as much as 2200 ° C in inert atmospheres and standing up to decay under extreme thermal biking.
Unlike alumina (Al two O SIX), AlN is chemically inert to molten metals and many reactive gases, making it suitable for harsh atmospheres such as semiconductor handling chambers and high-temperature furnaces.
Its high resistance to oxidation– creating only a thin protective Al ₂ O two layer at surface area upon direct exposure to air– guarantees long-lasting integrity without considerable destruction of mass residential properties.
Moreover, AlN shows outstanding electrical insulation with a resistivity exceeding 10 ¹⁴ Ω · centimeters and a dielectric strength above 30 kV/mm, important for high-voltage applications.
1.2 Thermal Conductivity and Digital Qualities
One of the most specifying feature of light weight aluminum nitride is its outstanding thermal conductivity, normally ranging from 140 to 180 W/(m · K )for commercial-grade substrates– over 5 times more than that of alumina (≈ 30 W/(m · K)).
This performance comes from the low atomic mass of nitrogen and aluminum, incorporated with strong bonding and very little point flaws, which permit efficient phonon transport with the latticework.
Nevertheless, oxygen impurities are particularly harmful; even trace amounts (over 100 ppm) replacement for nitrogen websites, producing aluminum vacancies and spreading phonons, thus considerably lowering thermal conductivity.
High-purity AlN powders manufactured using carbothermal reduction or direct nitridation are important to achieve optimum heat dissipation.
In spite of being an electrical insulator, AlN’s piezoelectric and pyroelectric residential properties make it useful in sensing units and acoustic wave devices, while its wide bandgap (~ 6.2 eV) sustains procedure in high-power and high-frequency digital systems.
2. Fabrication Procedures and Production Obstacles

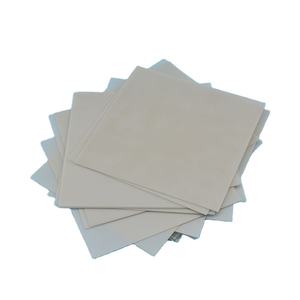

( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Techniques
Producing high-performance AlN substratums starts with the synthesis of ultra-fine, high-purity powder, generally achieved with responses such as Al Two O FOUR + 3C + N ₂ → 2AlN + 3CO (carbothermal decrease) or direct nitridation of light weight aluminum metal: 2Al + N ₂ → 2AlN.
The resulting powder has to be carefully crushed and doped with sintering aids like Y TWO O TWO, CaO, or uncommon planet oxides to advertise densification at temperature levels in between 1700 ° C and 1900 ° C under nitrogen ambience.
These additives form transient liquid phases that enhance grain limit diffusion, making it possible for full densification (> 99% theoretical density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can additionally lower oxygen content by getting rid of intergranular oxides, thereby restoring peak thermal conductivity.
Accomplishing consistent microstructure with regulated grain size is vital to stabilize mechanical toughness, thermal performance, and manufacturability.
2.2 Substratum Shaping and Metallization
When sintered, AlN ceramics are precision-ground and washed to meet tight dimensional tolerances required for electronic product packaging, often down to micrometer-level monotony.
Through-hole boring, laser cutting, and surface area patterning enable combination right into multilayer packages and crossbreed circuits.
A crucial action in substratum fabrication is metallization– the application of conductive layers (normally tungsten, molybdenum, or copper) through procedures such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper foils are bonded to AlN surfaces at elevated temperatures in a controlled environment, forming a strong user interface ideal for high-current applications.
Alternate methods like active metal brazing (AMB) make use of titanium-containing solders to boost adhesion and thermal exhaustion resistance, particularly under repeated power biking.
Proper interfacial design makes sure reduced thermal resistance and high mechanical dependability in operating gadgets.
3. Performance Advantages in Electronic Equipment
3.1 Thermal Management in Power Electronics
AlN substrates excel in taking care of warmth generated by high-power semiconductor tools such as IGBTs, MOSFETs, and RF amplifiers used in electric cars, renewable resource inverters, and telecoms infrastructure.
Reliable warmth extraction prevents local hotspots, decreases thermal stress and anxiety, and extends tool lifetime by mitigating electromigration and delamination dangers.
Contrasted to typical Al ₂ O five substrates, AlN enables smaller sized plan sizes and higher power densities due to its premium thermal conductivity, allowing developers to push efficiency borders without endangering integrity.
In LED illumination and laser diodes, where joint temperature directly impacts efficiency and shade stability, AlN substratums significantly enhance luminous result and functional life expectancy.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) likewise carefully matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), decreasing thermo-mechanical tension throughout thermal biking.
3.2 Electric and Mechanical Reliability
Past thermal efficiency, AlN uses low dielectric loss (tan δ < 0.0005) and steady permittivity (εᵣ ≈ 8.9) throughout a broad regularity variety, making it excellent for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature stops moisture access, removing rust risks in humid atmospheres– an essential advantage over natural substrates.
Mechanically, AlN has high flexural strength (300– 400 MPa) and hardness (HV ≈ 1200), making certain sturdiness during handling, assembly, and field operation.
These characteristics collectively contribute to improved system reliability, reduced failure rates, and reduced total price of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Systems
AlN ceramic substrates are now basic in innovative power components for industrial electric motor drives, wind and solar inverters, and onboard battery chargers in electric and hybrid vehicles.
In aerospace and protection, they support radar systems, electronic war units, and satellite communications, where efficiency under extreme conditions is non-negotiable.
Medical imaging tools, consisting of X-ray generators and MRI systems, additionally gain from AlN’s radiation resistance and signal stability.
As electrification trends accelerate throughout transportation and energy fields, need for AlN substratums remains to expand, driven by the need for small, reliable, and reliable power electronic devices.
4.2 Emerging Integration and Lasting Growth
Future innovations concentrate on integrating AlN right into three-dimensional packaging architectures, embedded passive components, and heterogeneous combination platforms combining Si, SiC, and GaN devices.
Study into nanostructured AlN movies and single-crystal substrates intends to further increase thermal conductivity towards academic limitations (> 300 W/(m · K)) for next-generation quantum and optoelectronic gadgets.
Initiatives to reduce manufacturing expenses via scalable powder synthesis, additive production of complex ceramic frameworks, and recycling of scrap AlN are obtaining energy to improve sustainability.
Additionally, modeling tools utilizing finite aspect evaluation (FEA) and artificial intelligence are being employed to optimize substrate layout for details thermal and electrical tons.
In conclusion, aluminum nitride ceramic substrates stand for a foundation technology in modern-day electronic devices, uniquely bridging the void in between electrical insulation and exceptional thermal transmission.
Their duty in enabling high-efficiency, high-reliability power systems emphasizes their strategic significance in the continuous evolution of electronic and power technologies.
