1. Fundamentals of Foam Generation and the Role in Lightweight Concrete Solution
1.1 Principles of Air Entrainment and Cellular Structure Formation

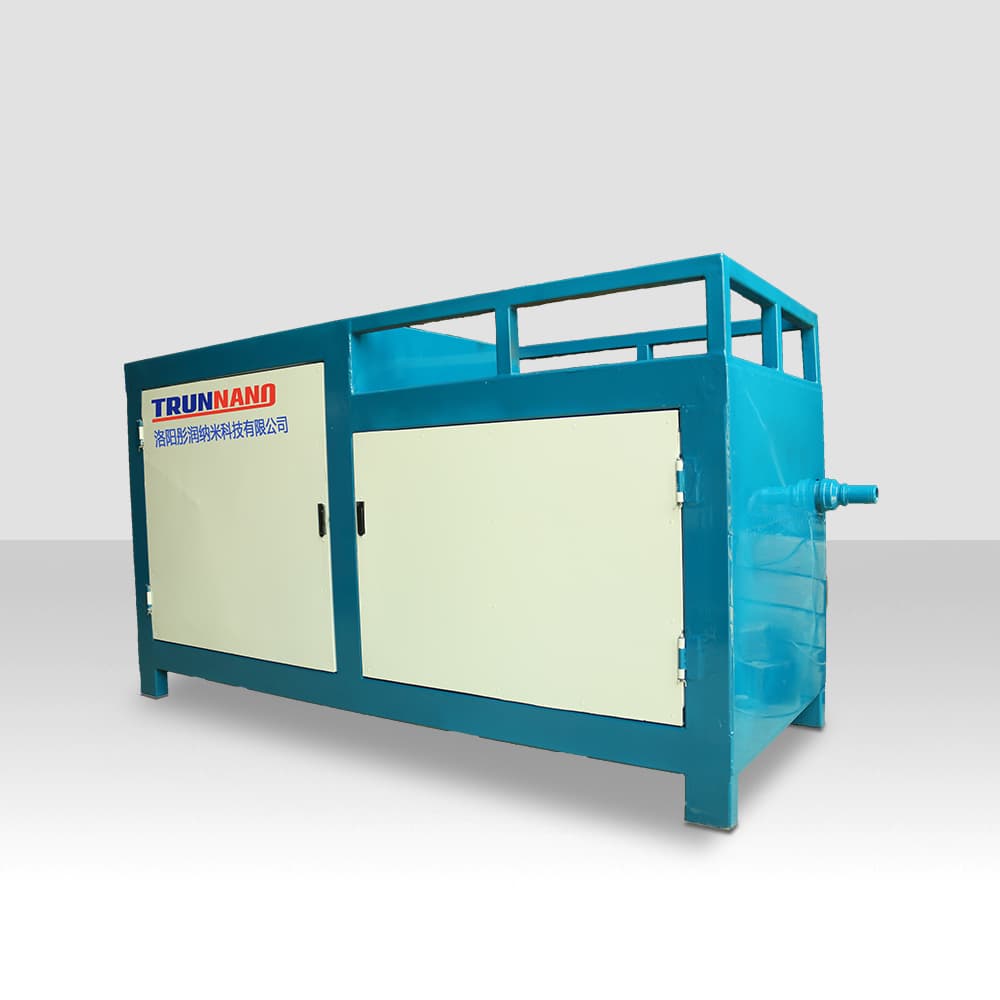

(Lightweight Concrete Foam Generators)
Lightweight concrete, a course of construction materials characterized by reduced density and improved thermal insulation, depends fundamentally on the controlled introduction of air or gas gaps within a cementitious matrix– a process referred to as foaming.
The development of these uniformly dispersed, steady air cells is attained through using a specialized gadget called a foam generator, which generates fine, microscale bubbles that are subsequently blended right into the concrete slurry.
These bubbles, generally ranging from 50 to 500 micrometers in diameter, end up being permanently entrained upon concrete hydration, causing a cellular concrete structure with dramatically lower system weight– often in between 300 kg/m five and 1,800 kg/m TWO– contrasted to standard concrete (~ 2,400 kg/m ³).
The foam generator is not merely a supporting tool but a crucial design element that determines the high quality, uniformity, and performance of the final lightweight concrete product.
The procedure starts with a liquid foaming representative, generally a protein-based or artificial surfactant remedy, which is introduced right into the generator where it is mechanically or pneumatically distributed right into a dense foam through high shear or compressed air shot.
The security and bubble size circulation of the generated foam directly affect essential product properties such as compressive stamina, thermal conductivity, and workability.
1.2 Classification and Operational Devices of Foam Generators
Foam generators are extensively classified right into 3 primary kinds based upon their functional principles: low-pressure (or wet-film), high-pressure (or dynamic), and rotating (or centrifugal) systems.
Low-pressure generators make use of a porous tool– such as a great mesh, material, or ceramic plate– where compressed air is compelled, developing bubbles as the foaming remedy flows over the surface.
This approach produces fairly large, less uniform bubbles and is typically utilized for lower-grade applications where specific control is less essential.
High-pressure systems, on the other hand, utilize a nozzle-based layout where a high-velocity stream of pressed air shears the frothing liquid right into a penalty, uniform foam with slim bubble dimension circulation.
These systems supply superior control over foam thickness and stability, making them ideal for structural-grade lightweight concrete and precast applications.

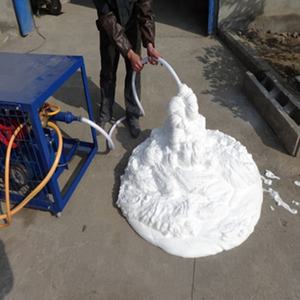

( Lightweight Concrete Foam Generators)
Rotating foam generators make use of a spinning disk or drum that flings the frothing option right into a stream of air, creating bubbles with mechanical dispersion.
While much less exact than high-pressure systems, rotary generators are valued for their robustness, convenience of upkeep, and constant output, appropriate for massive on-site putting procedures.
The choice of foam generator kind relies on project-specific requirements, including preferred concrete density, production volume, and performance requirements.
2. Material Science Behind Foam Stability and Concrete Efficiency
2.1 Foaming Agents and Interfacial Chemistry
The efficiency of a foam generator is intrinsically linked to the chemical structure and physical behavior of the foaming representative.
Lathering representatives are surfactants that lower the surface tension of water, allowing the development of secure air-liquid interfaces.
Protein-based representatives, stemmed from hydrolyzed keratin or albumin, generate long lasting, flexible foam movies with excellent stability and are typically liked in structural applications.
Synthetic agents, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and reduced expense but may produce less steady bubbles under extended blending or adverse ecological problems.
The molecular framework of the surfactant figures out the density and mechanical toughness of the lamellae (thin fluid movies) surrounding each bubble, which should stand up to coalescence and drainage throughout blending and healing.
Additives such as viscosity modifiers, stabilizers, and pH barriers are frequently incorporated right into foaming solutions to improve foam persistence and compatibility with cement chemistry.
2.2 Influence of Foam Characteristics on Concrete Quality
The physical attributes of the created foam– bubble dimension, size circulation, air web content, and foam thickness– straight determine the macroscopic habits of light-weight concrete.
Smaller sized, evenly dispersed bubbles enhance mechanical strength by lessening anxiety concentration factors and developing a much more uniform microstructure.
Conversely, larger or uneven bubbles can work as flaws, lowering compressive toughness and boosting leaks in the structure.
Foam security is equally essential; premature collapse or coalescence throughout blending result in non-uniform density, segregation, and decreased insulation efficiency.
The air-void system likewise impacts thermal conductivity, with finer, closed-cell frameworks providing remarkable insulation due to entraped air’s low thermal diffusivity.
In addition, the water web content of the foam affects the water-cement proportion of the last mix, necessitating precise calibration to stay clear of deteriorating the concrete matrix or delaying hydration.
Advanced foam generators now incorporate real-time surveillance and comments systems to maintain regular foam outcome, making sure reproducibility throughout batches.
3. Combination in Modern Building And Construction and Industrial Applications
3.1 Architectural and Non-Structural Uses Foamed Concrete
Lightweight concrete created through foam generators is employed throughout a broad spectrum of building applications, ranging from insulation panels and void filling to load-bearing walls and sidewalk systems.
In building envelopes, frothed concrete offers superb thermal and acoustic insulation, adding to energy-efficient designs and minimized HVAC tons.
Its reduced thickness likewise lowers structural dead load, enabling smaller foundations and longer spans in high-rise and bridge building and construction.
In civil design, it is used for trench backfilling, tunneling, and slope stabilization, where its self-leveling and low-stress characteristics stop ground disruption and improve safety.
Precast manufacturers utilize high-precision foam generators to produce light-weight blocks, panels, and building elements with limited dimensional tolerances and regular quality.
Furthermore, foamed concrete displays fundamental fire resistance because of its reduced thermal conductivity and absence of natural elements, making it appropriate for fire-rated settings up and passive fire security systems.
3.2 Automation, Scalability, and On-Site Production Systems
Modern building demands fast, scalable, and trusted manufacturing of light-weight concrete, driving the combination of foam generators into computerized batching and pumping systems.
Fully automated plants can integrate foam generation with concrete mixing, water application, and additive shot, enabling constant production with very little human intervention.
Mobile foam generator devices are increasingly deployed on construction sites, permitting on-demand manufacture of foamed concrete straight at the factor of use, decreasing transport prices and material waste.
These systems are usually outfitted with digital controls, remote monitoring, and information logging abilities to ensure compliance with engineering specifications and quality requirements.
The scalability of foam generation innovation– from little mobile units to industrial-scale systems– supports its adoption in both developed and arising markets, advertising sustainable building methods worldwide.
4. Technological Advancements and Future Directions in Foam Generation
4.1 Smart Foam Generators and Real-Time Refine Control
Arising advancements in foam generator design focus on improving accuracy, effectiveness, and adaptability through digitalization and sensor combination.
Smart foam generators outfitted with pressure sensors, flow meters, and optical bubble analyzers can dynamically adjust air-to-liquid proportions and screen foam top quality in real time.
Machine learning algorithms are being explored to anticipate foam behavior based on environmental conditions, basic material variations, and historical performance data.
Such developments aim to minimize batch-to-batch variability and maximize product performance, especially in high-stakes applications like nuclear protecting or overseas building.
4.2 Sustainability, Environmental Influence, and Eco-friendly Product Combination
As the building sector approaches decarbonization, foam generators play a role in decreasing the ecological footprint of concrete.
By reducing product density, less concrete is needed per unit volume, straight reducing CO â‚‚ emissions connected with concrete manufacturing.
Furthermore, foamed concrete can incorporate supplementary cementitious materials (SCMs) such as fly ash, slag, or silica fume, improving sustainability without endangering performance.
Research study is additionally underway to create bio-based frothing representatives originated from renewable sources, reducing reliance on petrochemical surfactants.
Future developments might consist of energy-efficient foam generation techniques, integration with carbon capture innovations, and recyclable concrete solutions allowed by secure mobile frameworks.
To conclude, the lightweight concrete foam generator is even more than a mechanical tool– it is a crucial enabler of advanced product design in contemporary construction.
By precisely managing the design of air spaces at the microscale, it changes conventional concrete right into a multifunctional, sustainable, and high-performance material.
As technology progresses, foam generators will continue to drive technology in structure science, infrastructure durability, and ecological stewardship.
