1. Material Principles and Microstructural Design
1.1 Structure and Crystallographic Stability of Alumina

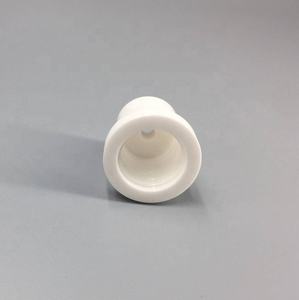

(Alumina Ceramic Nozzles)
Alumina (Al Two O SIX), specifically in its alpha stage, is a completely oxidized ceramic with a corundum-type hexagonal close-packed framework, providing outstanding thermal security, chemical inertness, and mechanical toughness at raised temperature levels.
High-purity alumina (usually 95– 99.9% Al Two O SIX) is preferred for nozzle applications due to its very little pollutant material, which reduces grain border weakening and enhances resistance to thermal and chemical deterioration.
The microstructure, including penalty, equiaxed grains, is engineered throughout sintering to decrease porosity and make the most of thickness, straight influencing the nozzle’s erosion resistance and architectural integrity under high-velocity liquid circulation.
Ingredients such as MgO are often presented in trace amounts to hinder irregular grain growth throughout sintering, ensuring a consistent microstructure that sustains long-term dependability.
1.2 Mechanical and Thermal Properties Relevant to Nozzle Performance
Alumina porcelains display a Vickers hardness going beyond 1800 HV, making them highly immune to abrasive wear from particulate-laden liquids, a crucial characteristic in applications such as sandblasting and rough waterjet cutting.
With a flexural toughness of 300– 500 MPa and a compressive strength over 2 GPa, alumina nozzles maintain dimensional security under high-pressure operation, normally ranging from 100 to 400 MPa in commercial systems.
Thermally, alumina maintains its mechanical residential or commercial properties approximately 1600 ° C, with a reduced thermal growth coefficient (~ 8 × 10 ⁻⁶/ K) that offers excellent resistance to thermal shock– important when subjected to quick temperature fluctuations throughout startup or closure cycles.
Its thermal conductivity (~ 30 W/m · K) suffices to dissipate localized warmth without inducing thermal slopes that can lead to breaking, balancing insulation and warm management requirements.
2. Production Processes and Geometric Precision
2.1 Shaping and Sintering Strategies for Nozzle Construction
The manufacturing of alumina ceramic nozzles starts with high-purity alumina powder, which is processed into a green body using methods such as cold isostatic pushing (CIP), shot molding, or extrusion, depending on the preferred geometry and batch dimension.
( Alumina Ceramic Nozzles)
Cold isostatic pushing uses uniform pressure from all directions, generating a homogeneous thickness distribution vital for lessening flaws throughout sintering.
Injection molding is used for intricate nozzle forms with interior tapers and fine orifices, permitting high dimensional accuracy and reproducibility in mass production.
After forming, the eco-friendly compacts undergo a two-stage thermal treatment: debinding to eliminate natural binders and sintering at temperatures in between 1500 ° C and 1650 ° C to attain near-theoretical thickness via solid-state diffusion.
Exact control of sintering environment and heating/cooling prices is vital to avoid warping, breaking, or grain coarsening that might jeopardize nozzle efficiency.
2.2 Machining, Polishing, and Quality Assurance
Post-sintering, alumina nozzles usually need accuracy machining to attain tight tolerances, specifically in the orifice area where flow dynamics are most sensitive to surface coating and geometry.
Diamond grinding and lapping are used to improve interior and exterior surfaces, achieving surface roughness values below 0.1 µm, which lowers flow resistance and stops bit buildup.
The orifice, usually varying from 0.3 to 3.0 mm in size, need to be devoid of micro-cracks and chamfers to make sure laminar circulation and regular spray patterns.
Non-destructive screening approaches such as optical microscopy, X-ray evaluation, and pressure cycling tests are utilized to verify structural honesty and efficiency consistency prior to deployment.
Customized geometries, including convergent-divergent (de Laval) profiles for supersonic flow or multi-hole selections for fan spray patterns, are increasingly fabricated using innovative tooling and computer-aided style (CAD)-driven manufacturing.
3. Useful Advantages Over Different Nozzle Materials
3.1 Superior Disintegration and Corrosion Resistance
Compared to metal (e.g., tungsten carbide, stainless-steel) or polymer nozzles, alumina exhibits much greater resistance to abrasive wear, especially in environments involving silica sand, garnet, or other difficult abrasives utilized in surface area prep work and cutting.
Steel nozzles deteriorate rapidly due to micro-fracturing and plastic contortion, calling for frequent substitute, whereas alumina nozzles can last 3– 5 times much longer, significantly minimizing downtime and operational expenses.
Additionally, alumina is inert to many acids, alkalis, and solvents, making it suitable for chemical spraying, etching, and cleaning processes where metallic parts would certainly corrode or contaminate the liquid.
This chemical stability is specifically valuable in semiconductor manufacturing, pharmaceutical processing, and food-grade applications requiring high purity.
3.2 Thermal and Electric Insulation Residence
Alumina’s high electrical resistivity (> 10 ¹⁴ Ω · centimeters) makes it ideal for usage in electrostatic spray finishing systems, where it protects against charge leak and makes certain uniform paint atomization.
Its thermal insulation capability allows secure operation in high-temperature splashing environments, such as flame splashing or thermal cleaning, without heat transfer to surrounding elements.
Unlike steels, alumina does not militarize undesirable chain reaction in reactive liquid streams, maintaining the stability of sensitive formulas.
4. Industrial Applications and Technological Effect
4.1 Functions in Abrasive Jet Machining and Surface Area Therapy
Alumina ceramic nozzles are indispensable in abrasive blasting systems for corrosion elimination, paint removing, and surface texturing in auto, aerospace, and building markets.
Their capability to maintain a constant orifice size over extended use makes certain uniform abrasive velocity and impact angle, straight affecting surface finish top quality and procedure repeatability.
In abrasive waterjet cutting, alumina focusing tubes assist the high-pressure water-abrasive mix, enduring erosive forces that would swiftly weaken softer materials.
4.2 Use in Additive Manufacturing, Spray Finish, and Fluid Control
In thermal spray systems, such as plasma and flame spraying, alumina nozzles straight high-temperature gas flows and liquified particles onto substratums, benefiting from their thermal shock resistance and dimensional security.
They are additionally used in accuracy spray nozzles for farming chemicals, inkjet systems, and fuel atomization, where wear resistance makes sure long-term dosing accuracy.
In 3D printing, specifically in binder jetting and material extrusion, alumina nozzles provide great powders or thick pastes with marginal blocking or use.
Emerging applications include microfluidic systems and lab-on-a-chip tools, where miniaturized alumina elements offer sturdiness and biocompatibility.
In recap, alumina ceramic nozzles represent a vital junction of products scientific research and commercial design.
Their outstanding combination of firmness, thermal stability, and chemical resistance makes it possible for trustworthy efficiency in several of the most demanding liquid handling settings.
As commercial processes push toward higher stress, finer resistances, and much longer service periods, alumina porcelains remain to establish the criterion for durable, high-precision flow control parts.
