1. Material Principles and Architectural Features of Alumina Ceramics
1.1 Crystallographic and Compositional Basis of Ī±-Alumina

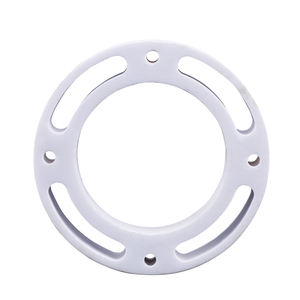

(Alumina Ceramic Substrates)
Alumina ceramic substratums, mostly composed of light weight aluminum oxide (Al two O SIX), serve as the foundation of modern digital product packaging because of their outstanding balance of electric insulation, thermal stability, mechanical stamina, and manufacturability.
One of the most thermodynamically secure stage of alumina at high temperatures is corundum, or Ī±-Al Two O FOUR, which crystallizes in a hexagonal close-packed oxygen latticework with aluminum ions occupying two-thirds of the octahedral interstitial sites.
This thick atomic plan conveys high firmness (Mohs 9), excellent wear resistance, and strong chemical inertness, making Ī±-alumina appropriate for harsh operating atmospheres.
Industrial substratums commonly have 90– 99.8% Al Two O THREE, with small enhancements of silica (SiO TWO), magnesia (MgO), or uncommon planet oxides made use of as sintering help to advertise densification and control grain growth during high-temperature handling.
Greater pureness qualities (e.g., 99.5% and over) display exceptional electric resistivity and thermal conductivity, while reduced purity variations (90– 96%) provide economical solutions for much less requiring applications.
1.2 Microstructure and Problem Engineering for Electronic Dependability
The performance of alumina substratums in digital systems is critically based on microstructural harmony and issue reduction.
A penalty, equiaxed grain structure– generally varying from 1 to 10 micrometers– guarantees mechanical honesty and minimizes the chance of split proliferation under thermal or mechanical tension.
Porosity, especially interconnected or surface-connected pores, should be reduced as it breaks down both mechanical stamina and dielectric efficiency.
Advanced handling methods such as tape spreading, isostatic pushing, and regulated sintering in air or controlled atmospheres enable the production of substratums with near-theoretical density (> 99.5%) and surface roughness below 0.5 Āµm, crucial for thin-film metallization and cable bonding.
Furthermore, pollutant partition at grain borders can bring about leak currents or electrochemical movement under bias, demanding stringent control over raw material purity and sintering problems to make sure lasting dependability in humid or high-voltage environments.
2. Manufacturing Processes and Substratum Manufacture Technologies

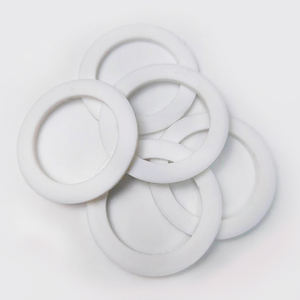

( Alumina Ceramic Substrates)
2.1 Tape Spreading and Environment-friendly Body Handling
The production of alumina ceramic substrates begins with the prep work of a very spread slurry containing submicron Al two O ā powder, natural binders, plasticizers, dispersants, and solvents.
This slurry is refined using tape casting– a constant method where the suspension is spread over a moving service provider movie making use of an accuracy medical professional blade to achieve uniform density, normally between 0.1 mm and 1.0 mm.
After solvent evaporation, the resulting “green tape” is flexible and can be punched, drilled, or laser-cut to develop through openings for upright interconnections.
Multiple layers might be laminated to produce multilayer substratums for complicated circuit combination, although most of industrial applications use single-layer setups as a result of cost and thermal development factors to consider.
The environment-friendly tapes are then meticulously debound to get rid of organic ingredients via controlled thermal disintegration before last sintering.
2.2 Sintering and Metallization for Circuit Integration
Sintering is carried out in air at temperature levels in between 1550 Ā° C and 1650 Ā° C, where solid-state diffusion drives pore elimination and grain coarsening to achieve complete densification.
The straight shrinking during sintering– usually 15– 20%– need to be exactly anticipated and compensated for in the design of environment-friendly tapes to make sure dimensional accuracy of the last substrate.
Complying with sintering, metallization is applied to develop conductive traces, pads, and vias.
Two key techniques control: thick-film printing and thin-film deposition.
In thick-film modern technology, pastes consisting of steel powders (e.g., tungsten, molybdenum, or silver-palladium alloys) are screen-printed onto the substratum and co-fired in a minimizing ambience to develop robust, high-adhesion conductors.
For high-density or high-frequency applications, thin-film processes such as sputtering or evaporation are utilized to deposit attachment layers (e.g., titanium or chromium) complied with by copper or gold, enabling sub-micron patterning through photolithography.
Vias are filled with conductive pastes and terminated to establish electrical interconnections in between layers in multilayer layouts.
3. Functional Characteristics and Efficiency Metrics in Electronic Solution
3.1 Thermal and Electric Actions Under Operational Stress
Alumina substrates are treasured for their favorable mix of modest thermal conductivity (20– 35 W/m Ā· K for 96– 99.8% Al ā O FIVE), which enables effective heat dissipation from power devices, and high quantity resistivity (> 10 Ā¹ā“ Ī© Ā· cm), guaranteeing marginal leak current.
Their dielectric continuous (Īµįµ£ ā 9– 10 at 1 MHz) is stable over a wide temperature and regularity array, making them appropriate for high-frequency circuits as much as numerous ghzs, although lower-Īŗ products like light weight aluminum nitride are preferred for mm-wave applications.
The coefficient of thermal expansion (CTE) of alumina (~ 6.8– 7.2 ppm/K) is sensibly well-matched to that of silicon (~ 3 ppm/K) and specific packaging alloys, decreasing thermo-mechanical tension during tool procedure and thermal biking.
However, the CTE inequality with silicon remains a concern in flip-chip and straight die-attach setups, typically calling for compliant interposers or underfill materials to alleviate tiredness failure.
3.2 Mechanical Toughness and Ecological Toughness
Mechanically, alumina substrates display high flexural toughness (300– 400 MPa) and outstanding dimensional security under tons, enabling their use in ruggedized electronic devices for aerospace, automotive, and industrial control systems.
They are resistant to vibration, shock, and creep at elevated temperature levels, maintaining architectural honesty up to 1500 Ā° C in inert environments.
In humid atmospheres, high-purity alumina reveals very little wetness absorption and exceptional resistance to ion migration, making certain lasting reliability in outside and high-humidity applications.
Surface hardness additionally protects against mechanical damages throughout handling and setting up, although treatment must be required to stay clear of edge chipping as a result of intrinsic brittleness.
4. Industrial Applications and Technological Impact Across Sectors
4.1 Power Electronic Devices, RF Modules, and Automotive Systems
Alumina ceramic substratums are common in power digital modules, consisting of protected entrance bipolar transistors (IGBTs), MOSFETs, and rectifiers, where they offer electric seclusion while promoting warmth transfer to heat sinks.
In radio frequency (RF) and microwave circuits, they function as provider platforms for hybrid integrated circuits (HICs), surface acoustic wave (SAW) filters, and antenna feed networks as a result of their secure dielectric buildings and low loss tangent.
In the automotive sector, alumina substrates are used in engine control units (ECUs), sensor plans, and electrical car (EV) power converters, where they withstand heats, thermal cycling, and exposure to corrosive fluids.
Their integrity under severe problems makes them crucial for safety-critical systems such as anti-lock stopping (ABDOMINAL MUSCLE) and advanced vehicle driver aid systems (ADAS).
4.2 Clinical Gadgets, Aerospace, and Arising Micro-Electro-Mechanical Solutions
Beyond customer and industrial electronics, alumina substratums are employed in implantable clinical tools such as pacemakers and neurostimulators, where hermetic sealing and biocompatibility are critical.
In aerospace and protection, they are made use of in avionics, radar systems, and satellite communication components as a result of their radiation resistance and security in vacuum settings.
In addition, alumina is significantly utilized as a structural and shielding platform in micro-electro-mechanical systems (MEMS), consisting of pressure sensing units, accelerometers, and microfluidic tools, where its chemical inertness and compatibility with thin-film handling are helpful.
As digital systems continue to require greater power thickness, miniaturization, and integrity under extreme conditions, alumina ceramic substrates stay a keystone product, linking the space in between efficiency, price, and manufacturability in advanced digital packaging.
