Introduction: Trick tools in power electronics
Silicon-controlled rectifiers (SCRs), likewise called thyristors, are semiconductor power devices with a four-layer triple junction framework (PNPN). Considering that its introduction in the 1950s, SCRs have been extensively utilized in commercial automation, power systems, home appliance control and various other fields due to their high endure voltage, huge existing carrying ability, rapid reaction and easy control. With the advancement of innovation, SCRs have actually evolved right into many types, consisting of unidirectional SCRs, bidirectional SCRs (TRIACs), turn-off thyristors (GTOs) and light-controlled thyristors (LTTs). The differences between these kinds are not only shown in the structure and working principle, however also identify their applicability in different application scenarios. This post will certainly begin with a technological point of view, integrated with specific parameters, to deeply analyze the major distinctions and normal uses of these four SCRs.
Unidirectional SCR: Basic and secure application core
Unidirectional SCR is the most standard and usual sort of thyristor. Its framework is a four-layer three-junction PNPN setup, including 3 electrodes: anode (A), cathode (K) and entrance (G). It only enables current to flow in one instructions (from anode to cathode) and switches on after eviction is activated. As soon as switched on, even if eviction signal is gotten rid of, as long as the anode current is more than the holding existing (generally less than 100mA), the SCR remains on.

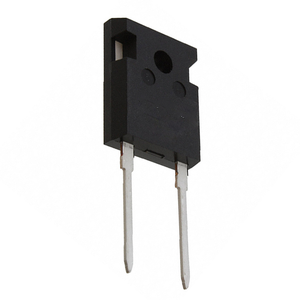

(Thyristor Rectifier)
Unidirectional SCR has strong voltage and existing tolerance, with an onward recurring top voltage (V DRM) of as much as 6500V and a rated on-state average existing (ITAV) of up to 5000A. For that reason, it is extensively used in DC motor control, commercial heater, uninterruptible power supply (UPS) rectification components, power conditioning gadgets and other occasions that need continual transmission and high power processing. Its advantages are basic framework, inexpensive and high integrity, and it is a core component of several traditional power control systems.
Bidirectional SCR (TRIAC): Suitable for air conditioning control
Unlike unidirectional SCR, bidirectional SCR, also known as TRIAC, can achieve bidirectional conduction in both favorable and negative fifty percent cycles. This structure includes 2 anti-parallel SCRs, which permit TRIAC to be activated and activated any time in the a/c cycle without transforming the circuit connection method. The in proportion transmission voltage range of TRIAC is generally ± 400 ~ 800V, the optimum load current is about 100A, and the trigger current is less than 50mA.
Due to the bidirectional conduction qualities of TRIAC, it is particularly suitable for air conditioning dimming and rate control in home appliances and customer electronics. For instance, gadgets such as light dimmers, follower controllers, and ac unit follower speed regulatory authorities all count on TRIAC to attain smooth power law. Furthermore, TRIAC also has a reduced driving power demand and appropriates for incorporated layout, so it has been widely used in wise home systems and little appliances. Although the power thickness and changing speed of TRIAC are not as good as those of brand-new power devices, its inexpensive and convenient usage make it an essential player in the area of tiny and average power a/c control.
Gateway Turn-Off Thyristor (GTO): A high-performance rep of active control
Gateway Turn-Off Thyristor (GTO) is a high-performance power gadget developed on the basis of traditional SCR. Unlike regular SCR, which can just be shut off passively, GTO can be shut off proactively by using an adverse pulse current to eviction, therefore accomplishing even more versatile control. This function makes GTO execute well in systems that need constant start-stop or quick response.

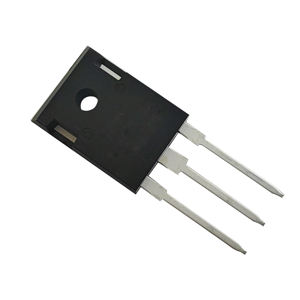

(Thyristor Rectifier)
The technological criteria of GTO show that it has incredibly high power handling capability: the turn-off gain has to do with 4 ~ 5, the maximum operating voltage can get to 6000V, and the optimum operating current depends on 6000A. The turn-on time is about 1μs, and the turn-off time is 2 ~ 5μs. These efficiency signs make GTO commonly utilized in high-power situations such as electrical engine grip systems, large inverters, industrial motor frequency conversion control, and high-voltage DC transmission systems. Although the drive circuit of GTO is relatively intricate and has high changing losses, its performance under high power and high vibrant response demands is still irreplaceable.
Light-controlled thyristor (LTT): A dependable choice in the high-voltage isolation setting
Light-controlled thyristor (LTT) uses optical signals instead of electric signals to set off transmission, which is its biggest feature that distinguishes it from various other sorts of SCRs. The optical trigger wavelength of LTT is usually in between 850nm and 950nm, the response time is determined in split seconds, and the insulation degree can be as high as 100kV or above. This optoelectronic isolation device substantially boosts the system’s anti-electromagnetic disturbance capability and security.
LTT is generally used in ultra-high voltage straight present transmission (UHVDC), power system relay protection tools, electro-magnetic compatibility security in medical equipment, and army radar communication systems etc, which have incredibly high demands for safety and security and stability. For instance, several converter stations in China’s “West-to-East Power Transmission” task have actually embraced LTT-based converter shutoff components to make sure steady operation under exceptionally high voltage problems. Some advanced LTTs can additionally be incorporated with gateway control to achieve bidirectional conduction or turn-off functions, further increasing their application variety and making them a perfect option for solving high-voltage and high-current control issues.
