1. The Science and Framework of Alumina Ceramic Products
1.1 Crystallography and Compositional Variants of Light Weight Aluminum Oxide

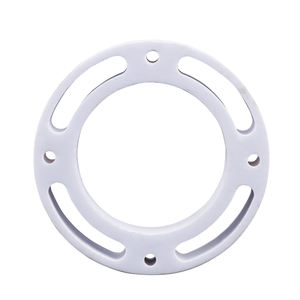

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from aluminum oxide (Al two O FOUR), a substance renowned for its phenomenal equilibrium of mechanical strength, thermal stability, and electrical insulation.
The most thermodynamically stable and industrially pertinent stage of alumina is the alpha (α) phase, which takes shape in a hexagonal close-packed (HCP) framework belonging to the diamond family.
In this setup, oxygen ions develop a thick lattice with aluminum ions inhabiting two-thirds of the octahedral interstitial websites, leading to a very secure and robust atomic structure.
While pure alumina is in theory 100% Al Two O THREE, industrial-grade materials frequently contain little percents of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y ₂ O FIVE) to control grain growth throughout sintering and improve densification.
Alumina ceramics are classified by purity degrees: 96%, 99%, and 99.8% Al ₂ O four prevail, with higher pureness correlating to enhanced mechanical residential or commercial properties, thermal conductivity, and chemical resistance.
The microstructure– particularly grain dimension, porosity, and phase circulation– plays an important role in determining the final performance of alumina rings in service environments.
1.2 Key Physical and Mechanical Properties
Alumina ceramic rings exhibit a suite of buildings that make them crucial sought after industrial setups.
They possess high compressive stamina (approximately 3000 MPa), flexural toughness (generally 350– 500 MPa), and superb hardness (1500– 2000 HV), enabling resistance to wear, abrasion, and deformation under load.
Their reduced coefficient of thermal development (about 7– 8 × 10 ⁻⁶/ K) makes sure dimensional stability across broad temperature level ranges, lessening thermal stress and anxiety and breaking during thermal cycling.
Thermal conductivity ranges from 20 to 30 W/m · K, depending on purity, permitting modest warmth dissipation– sufficient for many high-temperature applications without the need for active cooling.

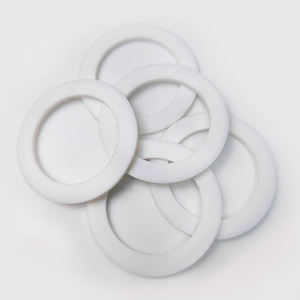

( Alumina Ceramics Ring)
Electrically, alumina is an impressive insulator with a volume resistivity going beyond 10 ¹⁴ Ω · cm and a dielectric strength of around 10– 15 kV/mm, making it excellent for high-voltage insulation elements.
Moreover, alumina shows outstanding resistance to chemical attack from acids, alkalis, and molten metals, although it is vulnerable to assault by strong alkalis and hydrofluoric acid at elevated temperature levels.
2. Manufacturing and Accuracy Engineering of Alumina Bands
2.1 Powder Handling and Forming Strategies
The manufacturing of high-performance alumina ceramic rings begins with the option and prep work of high-purity alumina powder.
Powders are generally manufactured using calcination of light weight aluminum hydroxide or via progressed approaches like sol-gel processing to accomplish great bit dimension and slim size distribution.
To create the ring geometry, a number of shaping methods are used, consisting of:
Uniaxial pressing: where powder is compressed in a die under high stress to develop a “eco-friendly” ring.
Isostatic pressing: applying consistent stress from all instructions using a fluid tool, causing higher density and even more uniform microstructure, particularly for complicated or large rings.
Extrusion: appropriate for lengthy cylindrical forms that are later on reduced into rings, usually made use of for lower-precision applications.
Injection molding: used for elaborate geometries and tight resistances, where alumina powder is mixed with a polymer binder and infused right into a mold.
Each technique influences the final density, grain placement, and flaw distribution, requiring mindful procedure choice based on application needs.
2.2 Sintering and Microstructural Growth
After forming, the green rings undertake high-temperature sintering, generally in between 1500 ° C and 1700 ° C in air or managed environments.
Throughout sintering, diffusion devices drive fragment coalescence, pore removal, and grain growth, resulting in a fully dense ceramic body.
The price of home heating, holding time, and cooling profile are exactly regulated to avoid fracturing, bending, or overstated grain growth.
Ingredients such as MgO are commonly introduced to hinder grain boundary flexibility, resulting in a fine-grained microstructure that enhances mechanical strength and integrity.
Post-sintering, alumina rings may go through grinding and splashing to accomplish tight dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface area coatings (Ra < 0.1 µm), critical for sealing, bearing, and electric insulation applications.
3. Functional Performance and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely made use of in mechanical systems because of their wear resistance and dimensional stability.
Key applications include:
Sealing rings in pumps and shutoffs, where they stand up to disintegration from rough slurries and harsh liquids in chemical processing and oil & gas sectors.
Bearing components in high-speed or destructive environments where metal bearings would certainly weaken or require constant lubrication.
Overview rings and bushings in automation equipment, offering reduced rubbing and long service life without the requirement for greasing.
Wear rings in compressors and wind turbines, reducing clearance between rotating and fixed components under high-pressure conditions.
Their ability to preserve performance in dry or chemically hostile environments makes them above several metal and polymer alternatives.
3.2 Thermal and Electrical Insulation Roles
In high-temperature and high-voltage systems, alumina rings serve as crucial shielding parts.
They are utilized as:
Insulators in heating elements and furnace elements, where they support resisting wires while standing up to temperatures over 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, protecting against electric arcing while preserving hermetic seals.
Spacers and assistance rings in power electronic devices and switchgear, separating conductive components in transformers, circuit breakers, and busbar systems.
Dielectric rings in RF and microwave tools, where their low dielectric loss and high breakdown strength guarantee signal honesty.
The combination of high dielectric strength and thermal stability enables alumina rings to operate dependably in atmospheres where natural insulators would degrade.
4. Material Innovations and Future Overview
4.1 Compound and Doped Alumina Systems
To even more boost efficiency, researchers and makers are creating advanced alumina-based compounds.
Instances consist of:
Alumina-zirconia (Al Two O ₃-ZrO ₂) compounds, which display boosted crack toughness with makeover toughening systems.
Alumina-silicon carbide (Al two O ₃-SiC) nanocomposites, where nano-sized SiC particles boost hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can modify grain border chemistry to enhance high-temperature toughness and oxidation resistance.
These hybrid materials prolong the operational envelope of alumina rings right into even more severe problems, such as high-stress dynamic loading or quick thermal biking.
4.2 Emerging Fads and Technological Combination
The future of alumina ceramic rings lies in smart assimilation and precision production.
Patterns consist of:
Additive production (3D printing) of alumina parts, allowing complicated inner geometries and personalized ring designs previously unachievable with traditional techniques.
Practical grading, where make-up or microstructure varies across the ring to enhance efficiency in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ tracking through ingrained sensing units in ceramic rings for anticipating upkeep in industrial machinery.
Enhanced use in renewable resource systems, such as high-temperature gas cells and focused solar power plants, where product dependability under thermal and chemical anxiety is extremely important.
As sectors require greater efficiency, longer life-spans, and minimized maintenance, alumina ceramic rings will remain to play a critical duty in enabling next-generation design remedies.
