1. Fundamental Structure and Polymorphism of Silicon Carbide
1.1 Crystal Chemistry and Polytypic Variety

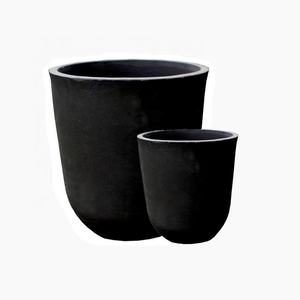

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently adhered ceramic material composed of silicon and carbon atoms prepared in a tetrahedral coordination, forming an extremely secure and durable crystal lattice.
Unlike numerous traditional ceramics, SiC does not possess a single, one-of-a-kind crystal framework; instead, it displays an amazing sensation referred to as polytypism, where the exact same chemical composition can take shape into over 250 distinctive polytypes, each varying in the piling series of close-packed atomic layers.
The most technically considerable polytypes are 3C-SiC (cubic, zinc blende structure), 4H-SiC, and 6H-SiC (both hexagonal), each providing various digital, thermal, and mechanical homes.
3C-SiC, additionally known as beta-SiC, is normally created at lower temperature levels and is metastable, while 4H and 6H polytypes, referred to as alpha-SiC, are much more thermally steady and commonly utilized in high-temperature and electronic applications.
This structural variety enables targeted material choice based upon the desired application, whether it be in power electronic devices, high-speed machining, or extreme thermal settings.
1.2 Bonding Qualities and Resulting Residence
The strength of SiC stems from its strong covalent Si-C bonds, which are short in size and extremely directional, causing an inflexible three-dimensional network.
This bonding configuration presents exceptional mechanical properties, including high hardness (usually 25– 30 GPa on the Vickers range), excellent flexural strength (up to 600 MPa for sintered kinds), and excellent crack sturdiness about other ceramics.
The covalent nature likewise adds to SiC’s superior thermal conductivity, which can reach 120– 490 W/m · K depending upon the polytype and pureness– equivalent to some steels and much exceeding most structural porcelains.
In addition, SiC displays a reduced coefficient of thermal expansion, around 4.0– 5.6 × 10 ⁻⁶/ K, which, when integrated with high thermal conductivity, offers it extraordinary thermal shock resistance.
This implies SiC elements can go through quick temperature level changes without breaking, an essential attribute in applications such as heater components, warm exchangers, and aerospace thermal protection systems.
2. Synthesis and Processing Strategies for Silicon Carbide Ceramics

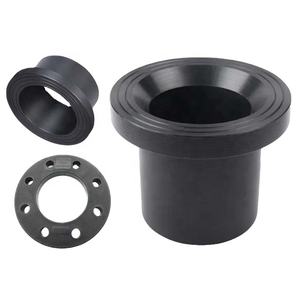

( Silicon Carbide Ceramics)
2.1 Main Production Approaches: From Acheson to Advanced Synthesis
The industrial manufacturing of silicon carbide dates back to the late 19th century with the creation of the Acheson procedure, a carbothermal decrease approach in which high-purity silica (SiO ₂) and carbon (commonly oil coke) are warmed to temperatures over 2200 ° C in an electric resistance furnace.
While this method remains commonly made use of for generating coarse SiC powder for abrasives and refractories, it yields material with impurities and uneven bit morphology, limiting its use in high-performance ceramics.
Modern advancements have actually led to different synthesis routes such as chemical vapor deposition (CVD), which produces ultra-high-purity, single-crystal SiC for semiconductor applications, and laser-assisted or plasma-enhanced synthesis for nanoscale powders.
These advanced methods allow exact control over stoichiometry, fragment size, and stage purity, vital for customizing SiC to particular engineering needs.
2.2 Densification and Microstructural Control
Among the best challenges in manufacturing SiC porcelains is achieving full densification as a result of its solid covalent bonding and low self-diffusion coefficients, which prevent conventional sintering.
To conquer this, a number of customized densification strategies have actually been created.
Reaction bonding involves infiltrating a permeable carbon preform with liquified silicon, which responds to develop SiC sitting, resulting in a near-net-shape part with marginal contraction.
Pressureless sintering is achieved by including sintering help such as boron and carbon, which advertise grain limit diffusion and eliminate pores.
Hot pushing and warm isostatic pressing (HIP) apply exterior stress during home heating, enabling complete densification at lower temperature levels and creating materials with superior mechanical buildings.
These handling strategies enable the manufacture of SiC elements with fine-grained, uniform microstructures, essential for making best use of stamina, put on resistance, and dependability.
3. Functional Efficiency and Multifunctional Applications
3.1 Thermal and Mechanical Durability in Rough Settings
Silicon carbide ceramics are uniquely matched for procedure in severe conditions due to their capability to preserve architectural stability at heats, resist oxidation, and withstand mechanical wear.
In oxidizing ambiences, SiC develops a safety silica (SiO TWO) layer on its surface, which reduces additional oxidation and allows constant usage at temperature levels approximately 1600 ° C.
This oxidation resistance, combined with high creep resistance, makes SiC ideal for components in gas wind turbines, combustion chambers, and high-efficiency warm exchangers.
Its outstanding hardness and abrasion resistance are exploited in commercial applications such as slurry pump components, sandblasting nozzles, and cutting tools, where steel alternatives would quickly weaken.
Moreover, SiC’s low thermal growth and high thermal conductivity make it a recommended material for mirrors precede telescopes and laser systems, where dimensional stability under thermal cycling is critical.
3.2 Electrical and Semiconductor Applications
Beyond its structural utility, silicon carbide plays a transformative duty in the field of power electronics.
4H-SiC, in particular, possesses a large bandgap of about 3.2 eV, making it possible for tools to run at greater voltages, temperatures, and switching regularities than traditional silicon-based semiconductors.
This leads to power tools– such as Schottky diodes, MOSFETs, and JFETs– with dramatically reduced energy losses, smaller sized dimension, and boosted efficiency, which are currently widely utilized in electric lorries, renewable resource inverters, and wise grid systems.
The high failure electrical area of SiC (about 10 times that of silicon) allows for thinner drift layers, lowering on-resistance and developing device performance.
Furthermore, SiC’s high thermal conductivity aids dissipate warm successfully, minimizing the need for cumbersome air conditioning systems and enabling even more portable, reliable digital modules.
4. Arising Frontiers and Future Expectation in Silicon Carbide Modern Technology
4.1 Assimilation in Advanced Power and Aerospace Systems
The recurring transition to tidy power and electrified transportation is driving extraordinary demand for SiC-based components.
In solar inverters, wind power converters, and battery administration systems, SiC tools contribute to greater power conversion performance, straight lowering carbon emissions and operational prices.
In aerospace, SiC fiber-reinforced SiC matrix compounds (SiC/SiC CMCs) are being created for wind turbine blades, combustor liners, and thermal security systems, supplying weight financial savings and efficiency gains over nickel-based superalloys.
These ceramic matrix composites can operate at temperature levels going beyond 1200 ° C, making it possible for next-generation jet engines with higher thrust-to-weight ratios and boosted fuel efficiency.
4.2 Nanotechnology and Quantum Applications
At the nanoscale, silicon carbide shows unique quantum residential or commercial properties that are being discovered for next-generation innovations.
Certain polytypes of SiC host silicon vacancies and divacancies that act as spin-active defects, working as quantum little bits (qubits) for quantum computing and quantum sensing applications.
These issues can be optically booted up, adjusted, and review out at area temperature level, a significant advantage over several other quantum systems that need cryogenic conditions.
In addition, SiC nanowires and nanoparticles are being examined for use in field emission gadgets, photocatalysis, and biomedical imaging because of their high facet ratio, chemical security, and tunable electronic homes.
As research proceeds, the integration of SiC into crossbreed quantum systems and nanoelectromechanical devices (NEMS) guarantees to broaden its duty past traditional design domains.
4.3 Sustainability and Lifecycle Factors To Consider
The production of SiC is energy-intensive, especially in high-temperature synthesis and sintering processes.
Nevertheless, the lasting benefits of SiC elements– such as extensive life span, reduced maintenance, and enhanced system efficiency– typically surpass the preliminary environmental footprint.
Initiatives are underway to create even more lasting manufacturing courses, including microwave-assisted sintering, additive production (3D printing) of SiC, and recycling of SiC waste from semiconductor wafer handling.
These technologies intend to minimize energy intake, decrease material waste, and sustain the round economy in sophisticated materials markets.
To conclude, silicon carbide porcelains stand for a keystone of modern materials scientific research, connecting the void in between structural resilience and practical flexibility.
From enabling cleaner energy systems to powering quantum innovations, SiC continues to redefine the borders of what is feasible in design and science.
As processing strategies advance and brand-new applications emerge, the future of silicon carbide remains incredibly intense.
